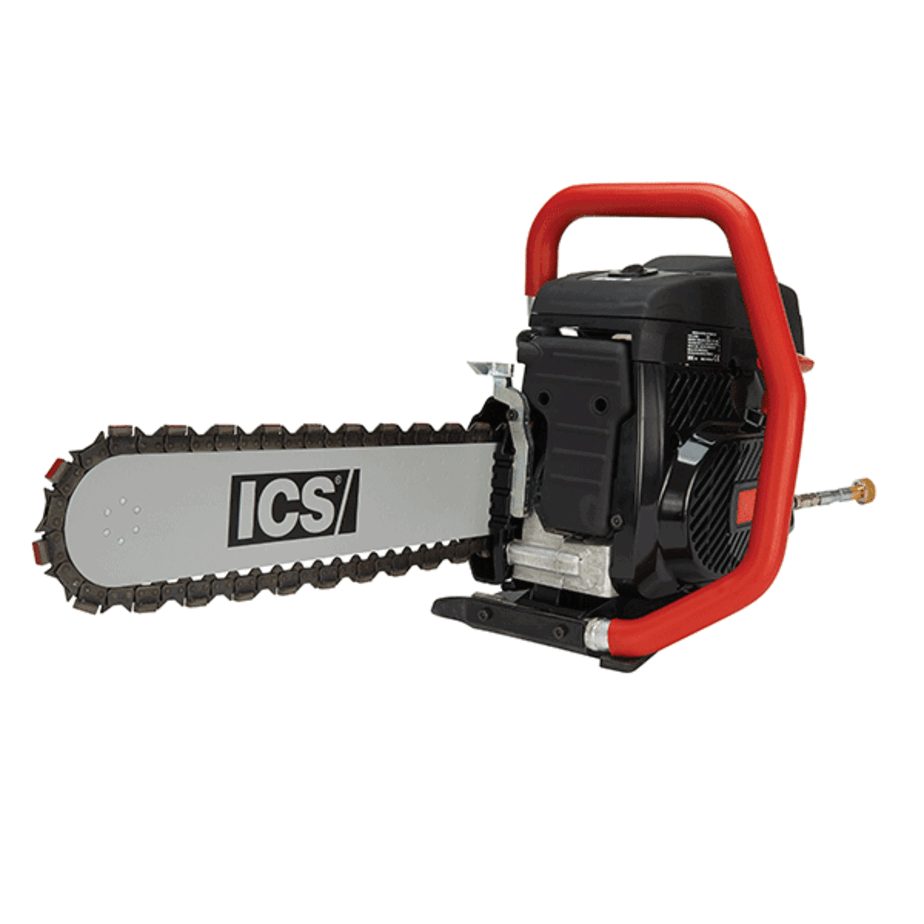

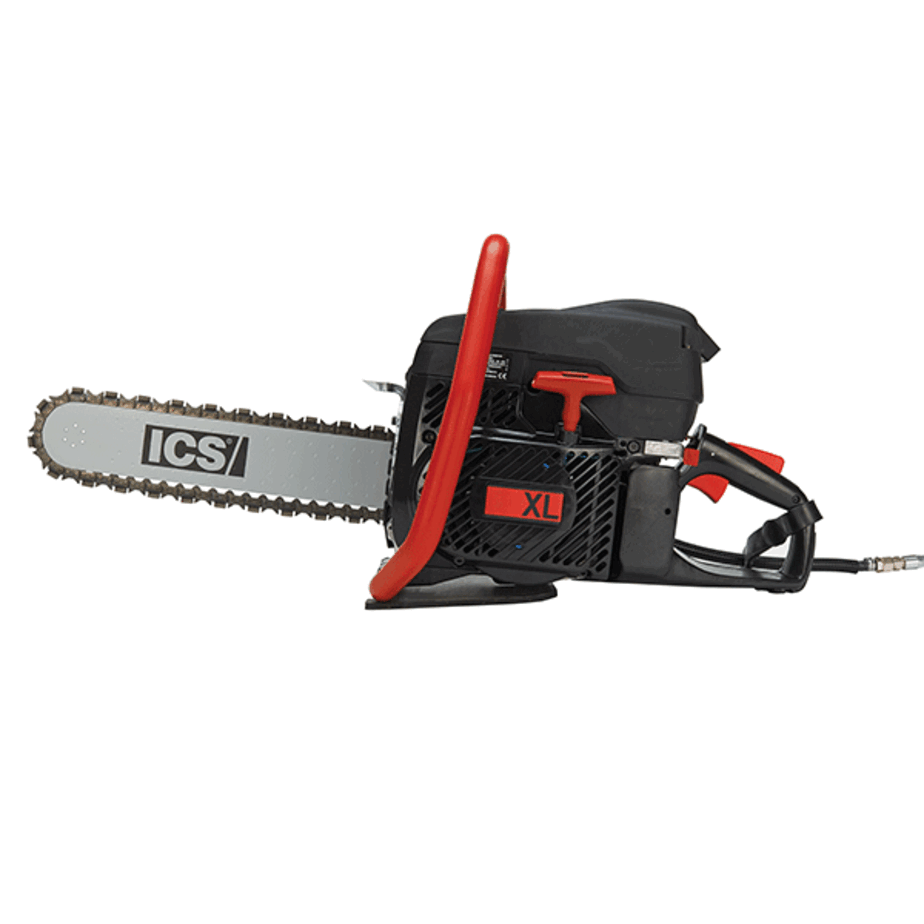

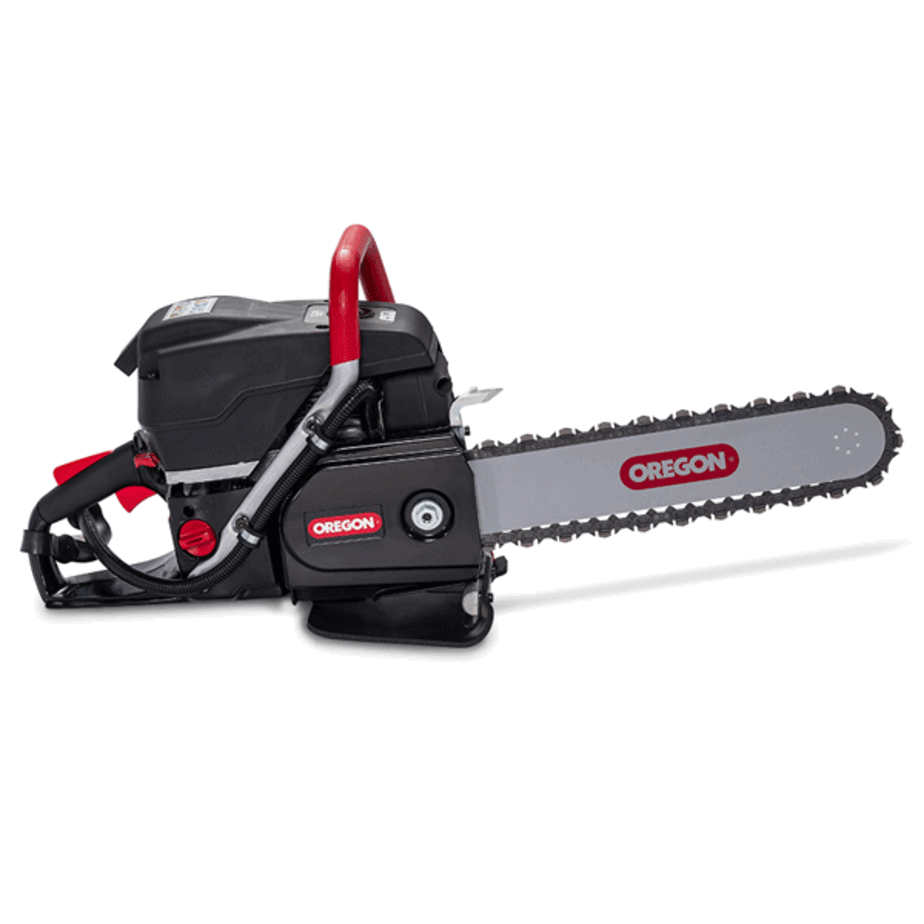

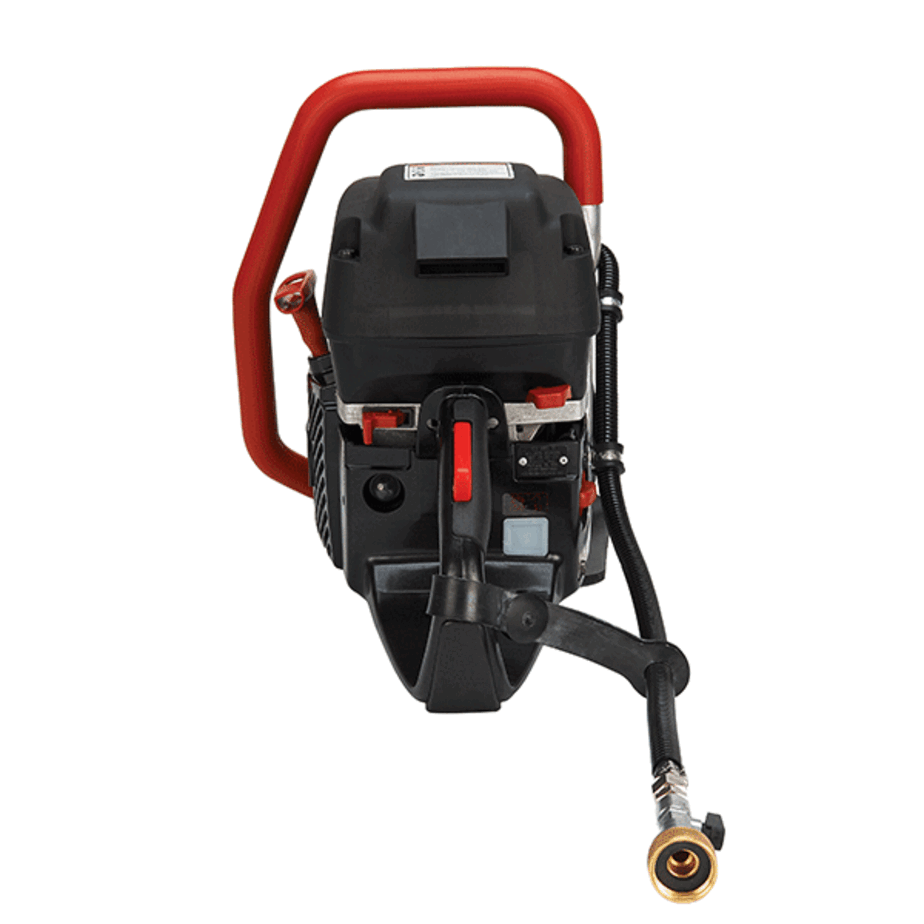

695XL-GC 12-IN FORCE3 SAW PACKAGE P/N 576150

The powerful 695XL-GC 12-inch chainsaw is a great choice for general contractors who need more power and versatality. Get up to 12-inches cutting depth. Powerful 6.4 HP two-cycle engine. Includes TWO CHAINS and FREE GROUND FREIGHT (Contiguous US)
$2,809.95
WEIGHT: 21 LBS. powerhead only
BAR LENGTH: Up to 16-inches (20-inches w/ precut)
ENGINE SPEED : 9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
HORSEPOWER: 4.8kW (6.4 hp) @ 9000 rpm
TORQUE: 5.7 Nm (50.4 in-lbs) @ 7200 rpm
ENGINE TYPE : 2-stroke, air cooled
DISPLACEMENT: 94cc (5.7 cu-in)
CHAIN SPEED: 28 m/s (5500 ft /min)
POWERHEAD DIMENSIONS : 46cm (18") L x 36cm (14") H x 30cm (12") W
NOISE LEVEL : 102 dB @ 3 ft (1 m)
VIBRATION LEVEL: 8 meters/second2 (front handle)
WATER SUPPLY: Minimum 20 psi (1.5 bar)
FUEL MIX RATIO : 50:1 (4%) fuel-to-oil
FUEL CAPACITY : 0.26 gal (1.0 liter) estimate 15-18 minute run time per tank
Article number: IPG-576150
Availability: Out of stock
All saw packages come with TWO chains!

ICS 695XL-GC 12-Inch concrete saw package includes:

  • (1) Each P/N 581192 695XL-GC Power Head
  • (2) Each P/N 584290 Force3 Standard Chains
  • (1) Each P/N 553207 Force3 12-inch Guide Bar

Based in the previous 695 platform, the 695XL has been improved with easier starting, quieter operation, and increased efficiency. This package is perfect for the general contractor looking for more power and a versatility.

FEATURES AND BENEFITS

  • Re-engineered piston and cylnder provide cooler operation
  • Operates Force3 3/8" pitch chains as well as .444-pitch chains*
  • Up to 12-inch cutting depth
  • Powerful 6.4 hp 2-stroke engine
  • Easy-to-tune carburetor
  • Easy-to-start in all weather and altitudes

* .444"-pitch sprocket and bar required

ICS 695XL DATA SHEET
ICS 695XL
Data Sheet

Cutting Tips
ICS 695XL
Owner's Manual


Chain Tensioning
Tip Sheet

Cutting Tips
Cutting Tips
Sheet

Cutting Tips
FORCE3 Chain
Catalog

695XL Safety Notifications

READ THE Safety NOTICES from the ICS 695XL Operation Manual, before operating this equipment. It is each end user's responsibility to utilize the Manufacturer's published information for current changes.
