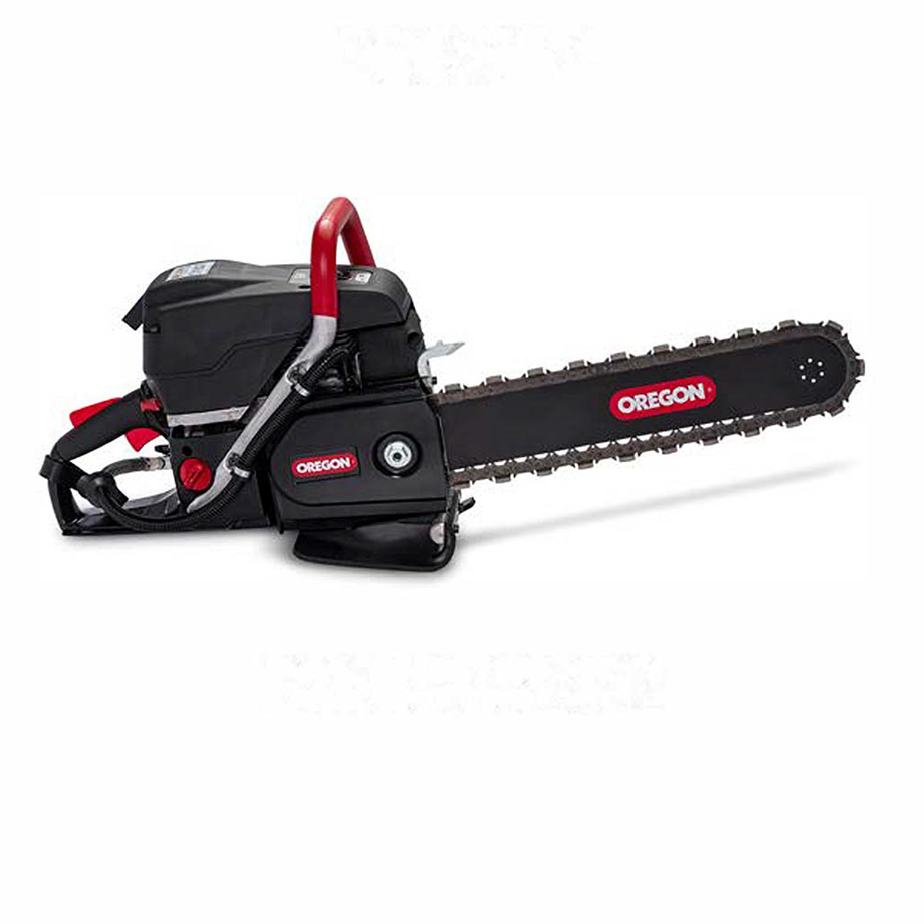

695XL-16 Gas 16" Saw Package #575872

For the uncompromising concrete cutter looking for the most powerful gas saw ICS offers. Includes TWO 16" FORCE4 standard chains and (1) 16" ProForce guide bar.

FREE GROUND FREIGHT to most lower U.S. locations!
$3,658.40
WEIGHT: 21 LBS. powerhead only
BAR LENGTH: Up to 16-inches (20-inches w/ precut)
ENGINE SPEED : 9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
HORSEPOWER: 4.8kW (6.4 hp) @ 9000 rpm
TORQUE: 5.7 Nm (50.4 in-lbs) @ 7200 rpm
ENGINE TYPE : 2-stroke, air cooled
DISPLACEMENT: 94cc (5.7 cu-in)
CHAIN SPEED: 28 m/s (5500 ft /min)
POWERHEAD DIMENSIONS : 46cm (18") L x 36cm (14") H x 30cm (12") W
NOISE LEVEL : 102 dB @ 3 ft (1 m)
VIBRATION LEVEL: 8 meters/second2 (front handle)
WATER SUPPLY: Minimum 20 psi (1.5 bar)
FUEL MIX RATIO : 50:1 (4%) fuel-to-oil
FUEL CAPACITY : 0.26 gal (1.0 liter) estimate 15-18 minute run time per tank
Article number: IPG-575872
Availability: Out of stock



Easier Starting and Increased Efficiency with the ICS 695XL-16 Gas Saw Package

Saw package includes powerhead, 2 chains, 1 guide bar.

This package includes heavier duty 0.444" pitch chains and is a great choice professional concrete cutters.

  • Re-engineered piston and cylnder provide cooler operation
  • Operates Force3 3/8" pitch chains as well as .444-pitch chains*
  • Up to 16-inch cutting depth
  • Powerful 6.4 hp 2-stroke engine
  • Easy-to-start in all weather and altitudes



Saw package includes:

  • (1) #575826 695XL-F4 Power Head
  • (2) #525342 Force4 Standard Chains
  • (1) #524490 Force4 16-inch Guide Bar

FREE GROUND FREIGHT to most lower U.S. locations!

Questions? We're here to assist. Email or call 800-882-4959

ICS Chain Applications, Tensioning, and Cutting Tips

ICS Chain Tensioning Video

ICS Cutting Tips Video

ICS 695XL Operator Manual

ICS 695XL Data/Specs
