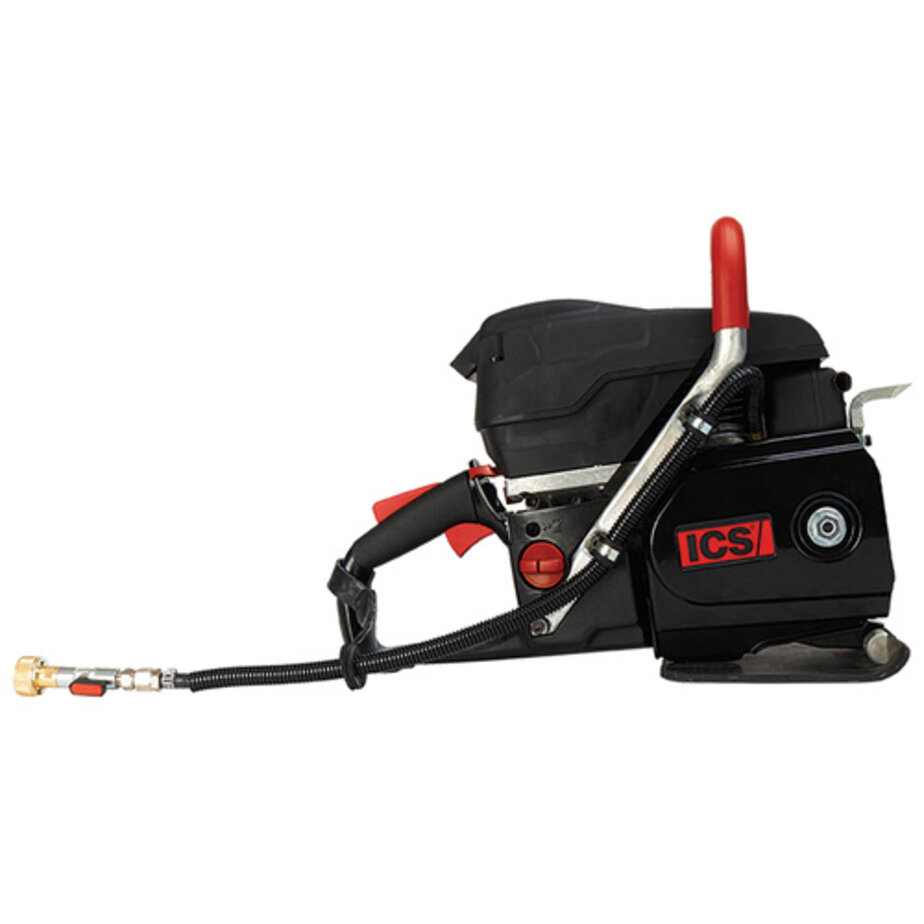

ICS 575826 FORCE4 & PowerGrit 695XL-F4 ICS Gas Powerhead

Add your review

Configured with 0.444" pitch sprocket for FORCE4 and PowerGRIT chains. Cuts up to 20" deep. Powerful 6.4 HP two-cycle motor. Power head only.

FREE GROUND FREIGHT

Default

Make a choice:

$2,219.95

+ -

Add to cart

Specifications

WEIGHT:	21 LBS. powerhead only
BAR LENGTH:	Up to 16-inches (20-inches w/ precut)
ENGINE SPEED :	9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
HORSEPOWER:	4.8kW (6.4 hp) @ 9000 rpm
TORQUE:	5.7 Nm (50.4 in-lbs) @ 7200 rpm
ENGINE TYPE :	2-stroke, air cooled
DISPLACEMENT:	94cc (5.7 cu-in)
CHAIN SPEED:	28 m/s (5500 ft /min)
POWERHEAD DIMENSIONS :	46cm (18") L x 36cm (14") H x 30cm (12") W
NOISE LEVEL :	102 dB @ 3 ft (1 m)
VIBRATION LEVEL:	8 meters/second2 (front handle)
WATER SUPPLY:	Minimum 20 psi (1.5 bar)
FUEL MIX RATIO :	50:1 (4%) fuel-to-oil
FUEL CAPACITY :	0.26 gal (1.0 liter) estimate 15-18 minute run time per tank

ics powerhead

Brand:

ICS

Add to wishlist / Add to compare / Print

Information

Article number:	IPG-575826
Availability:	In stock

CESSCO is the largest ICS dealer in North America

FORCE4 & PowerGrit 695XL-F4 Gas Powerhead is designed for the pro cutter in mind, and configured for .444" pitch chains.

Re-engineered piston and cylnder provide cooler operation
Operates Force3 3/8" pitch chains as well as .444-pitch chains*
Up to 16-inch cutting depth
Powerful 6.4 hp 2-stroke engine
Easy-to-tune carburetor
Easy-to-start in all weather and altitudes

ICS 695XL
Data Sheet

ICS 695XL
Owner's Manual

Chain Tensioning
Tip Sheet

Cutting Tips
Sheet

695XL Safety Notifications

READ THE Safety NOTICES from the ICS 695XL Operation Manual, before operating this equipment. It is each end user's responsibility to utilize the Manufacturer's published information for current changes.
