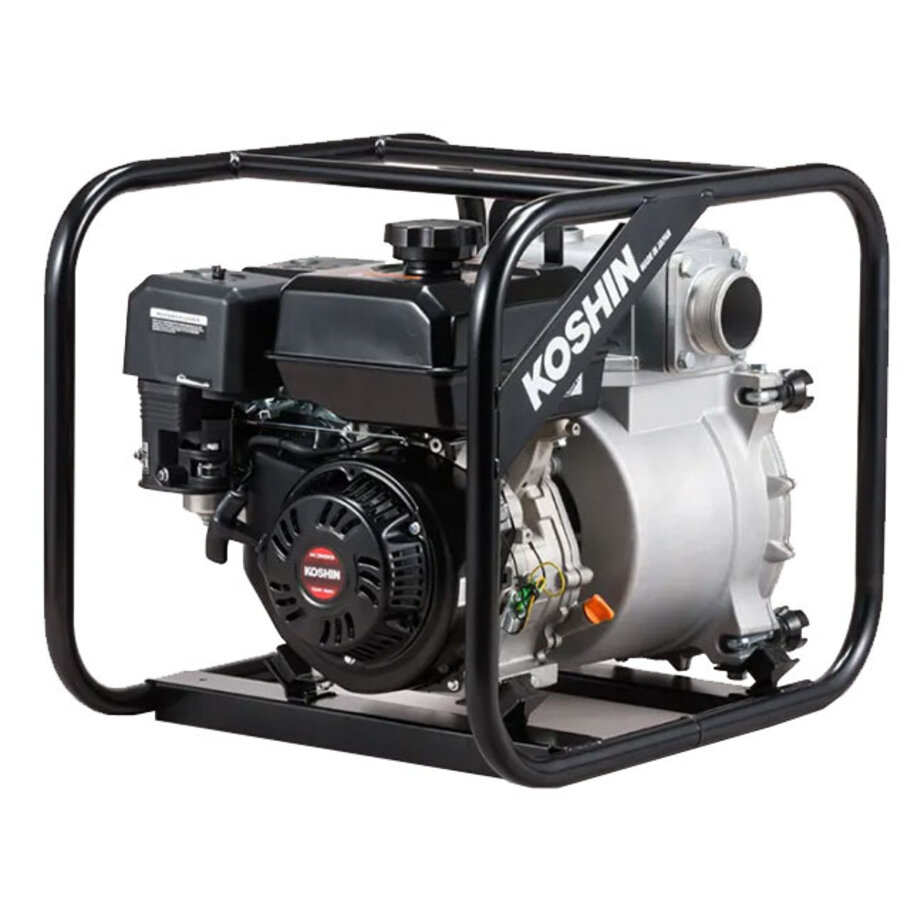

KTZ-80S Koshin 3" Trash Pump

3 in Koshin Trash Pump. 6.7 hp 301cc Koshin Engine. Max Output 375 gpm. Max Head 72 ft
Article number: KOS-KTZ-80S
Availability: Out of stock
Product Data
Pump Max Solids Size 27mm (1.06″)
Connection Dia. 80mm (3”)
Max. Total Head 22m (72 ft)
Max. Delivery Volume 1420 /min (375 USG/min)
Max. Suction Lift 8m (26 ft)
Material of Mechanical Seal Sic x Sic
Material of Impeller Hi-Chrome
Material of Volute Casing FCD450
Engine Model K300
Exhaust Volume 301cc
Rated Output 5.0kW/min-1(6.8PS)(6.7 HP) / 3600rpm
  6.0kW/min-1(8.2PS)(8.1 HP) / 3600rpm
Engine oil 15W-40 SAE (API service category SD or later)
Engine oil capacity 1.1L (0.30 USG)
Fuel Tank Capacity 5.9L (1.5 USG)
Starting method Recoil starter
Continuous operating time Approx. 2.0 hrs
Accessories 1 Strainer, 3 Hose bands , 1 Wrench
Product Dimension (L x W x H) 699mm x 564mm x 570mm
Outer Carton Dimension (L x W x H) 729mm x 589mm x 602mm
Net Weight 65.3 kg (144.0 lbs)
Gross Weight 71.7 kg (158.0 lbs)
