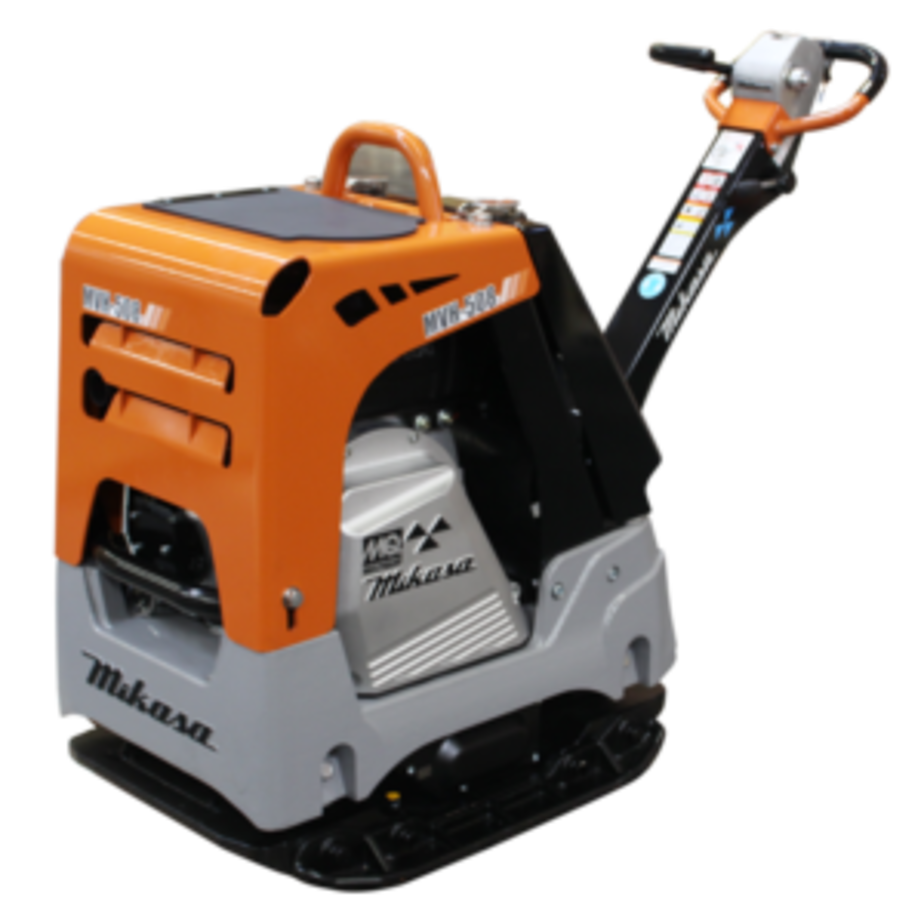

Multiquip MVH508GH Reversible Plate
Our biggest MQ-Mikasa reversible plate compactor has long been the contractors’ top choice for maximum performance. Multiquip Mikasa MVH508GH reversible plate compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils. The MVH508GH comes with an electric start Honda gas engine.
- Reliable Honda gasoline GX390 series engine offering easy electric or recoil start-up.
- Fold-out front and rear covers for easy access to all maintenance points.
- Hour/Tachometer to measure machine hour usage and engine RPM.
- Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
- Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
- Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
- Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
- Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
- Low profile base plate lowers the center of gravity dramatically improving travel speed.
- Optional extension plates can be added or removed to operating working width up to 6 inches.
- Mikasa is renowned for quality compaction equipment.
Delivery of this product must be made to a commercial address. Residential destinations will incur additional fees. A CESSCO representative will contact you with details. For inquiries, please call 800-882-4959 or email [email protected].
| Centrifugal Force | 13489 lbf | 60 kN |
| Exciter Speed | 4,400 VPM | |
| Plate Size | 20x35 in 500x900 mm |
|
| Plate Size with Extensions |
26x35 in 650x900 mm |
|
| Max Forward Speed Per Min. |
82 ft | 25 m |
| Overall Length | 63 in | 1600 mm |
| Overall Width | 26 in | 650 mm |
| Overall Height | 48 in | 1210 mm |
| Operating Weight | 935 lb | 425 kg |
| Shipping Weight | 968 lb | 440 kg |
