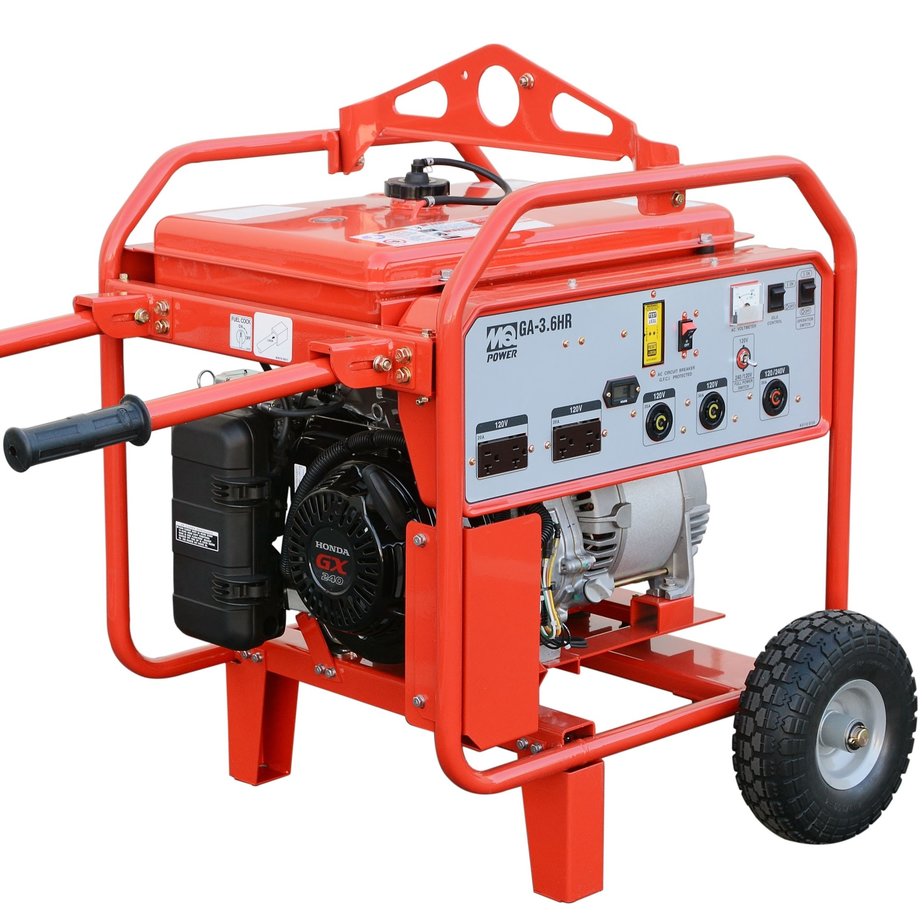

GA36HR MQ 3.6kW Generator, Wheel Kit, Honda GX240
CESSCO sells the Multiquip GA36HR with free freight to most lower 48 destinations.
|Availability:||Out of stock|
Multiquip GA36HR Generator*
*Prices, features and equipment specs. are subject to change without notice.
An all-around performer that delivers 120/240V output in a mid-size package. This unit is ideal for supplying power to heaters, power tools and small air-compressors. This model comes standard with a GFCI protected main breaker, hour meter, wheel kit and automatic idle control.
- Lightweight and compact design for easy transport
- 100% copper windings for maximum conductivity
- Alternator design eliminates maintenance by removing brushes and slip rings
- Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
- Includes a wheel kit and folding lifting bale as standard equipment
- Powered by Honda GX240 engine with low-oil shutdown and idle control
- Full panel GFCI protection - OSHA and NEC compliant
- Visit mfg. website for more info: https://www.multiquip.com/multiquip/GA36HR.htm
Unit Specifications Alternator Design Brushless Frequency 60 hz Phase Single Phase Voltage 120/240 V Sound level at 30 ft. 76 dBA Fuel Tank Capacity 5 gal 19 L Power Generation Maximum Continuous Watts 3600 W 3200 W Amps at 120V 30 A 26.6 A Amps at 240V 15 A 13.3 A Receptacles & Circuit Breakers Main Circuit Breaker 21 A Number of Poles 2 1 Receptacle of Each: L5-20R 125V T-Lock 20A
L5-30R 125V T-Lock 30A
L14-20R 125/250V T-Lock 20A
2 Receptacle of Each: 5-20R 125V GFCI 20A Dimensions & Weights Overall Length 25.5 in 64 mm Overall Width 22 in 56 mm Overall Height 24 in 61 mm Operating Weight 215.73 lb. 97.85 kg Shipping Weight 174 lb. 79 kg Engine Specifications Engine Make/Model Honda GX-240 (Recoil Only) Start Method Recoil Engine Power 7.9 HP 5.3 kW Engine RPM 3600 Fuel Type Gasoline
