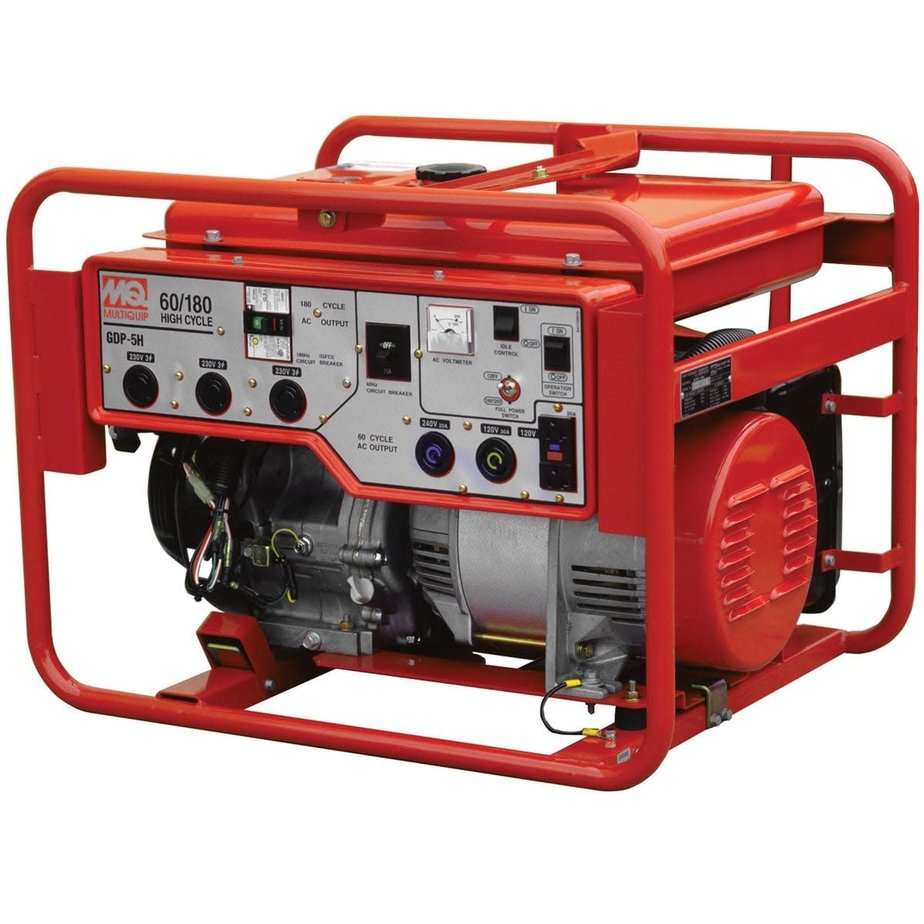

GDP5HA MQ High-Cycle Generator, Skid, Honda GX340

CESSCO sells the Multiquip GDP5HA with free freight to most lower 48 destinations.
$4,388.95
Article number: MUL-GDP5HA
Availability: Out of stock

Multiquip GDP5HA H/C Generator*

*Prices, features and equipment specs. are subject to change without notice.

High-Cycle Generator 5kW/180Hz-4kW60Hz, Honda GX340 engine, wheel kit optional

The industry's only generator that simultaneously produces 60Hz/180Hz power for standard tools and high-cycle vibrators. Powered by a Honda GX340 engine this unit takes the place of two generators. Ideal for the professional contractor.
  • Powers up to three 2-inch (50 mm) FXA-series high cycle vibrators
  • Control panel has separate 60Hz and 180Hz outlets
  • Folding lifting bale is standard equipment
  • Standard voltmeter assists in troubleshooting
  • Produces 3.6kW of continuous 120/240-volt 60-cycle power for standard power tools
  • Full panel GFCI protection - OSHA and NEC compliant
  • Visit mfg. website for more info: https://www.multiquip.com/multiquip/GDP5H.htm
  • Unit Specifications
    Alternator Design Brushless Revolving Field Type
    Fuel Tank Capacity 5 gal 19 L
    Frequency 60/180 Hz
    60HZ Power Output
    Phase Single
    Continuous Output 3.6 kW
    Maximum Output 4 kW
    Voltage 120/240 V
    Continuous Amps 30A @ 120V 15A @ 240V
    Maximum Amps 33A @ 120V 16.5A @ 240V
    180HZ Power Output
    Phase 3-Phase
    Continuous Output 5 kVA
    Voltage 230 V
    Continuous Amps 12.5 A
    Receptables & Circuit Breakers
    Circuit Breakers 60Hz - 30 A
    180Hz - A
    Number of Poles 60Hz - 2
    180Hz - 3
    1 Receptacle of Each L6-20R 250V T-Lock 20A
    L5-30R 125V T-Lock 30A
    3 Receptacles of Each NEMA 7410 230V T-Lock 12.5A
    Dimensions & Weights
    Overall Length 28.34 in. 72 mm
    Overall Width 22 in. 55.88 mm
    Overall Height 21.25 in. 54 mm
